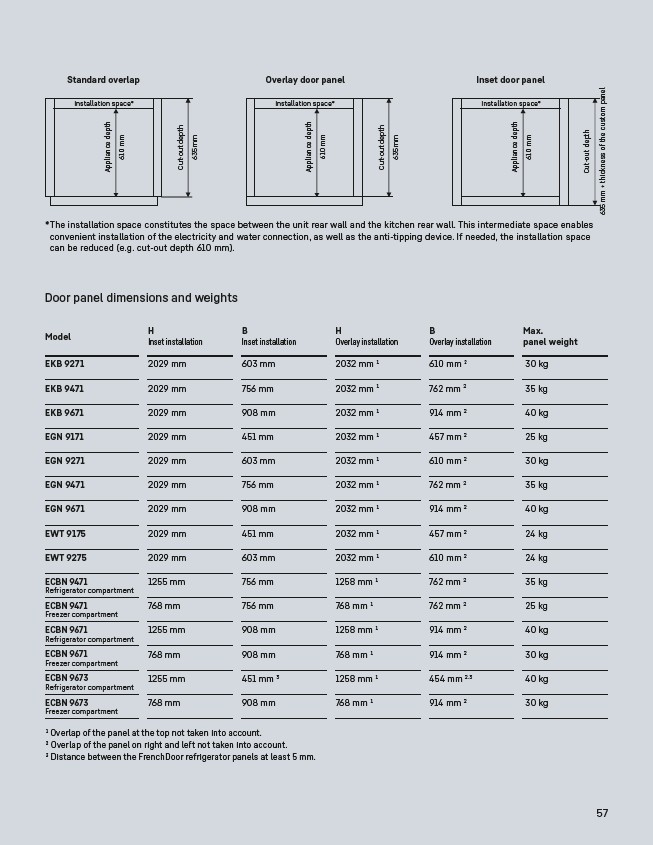

Standard overlap Overlay door panel Inset door panel
Installation space* Installation space* Installation space*
Appliance depth
* The installation space constitutes the space between the unit rear wall and the kitchen rear wall. This intermediate space enables
convenient installation of the electricity and water connection, as well as the anti-tipping device. If needed, the installation space
can be reduced (e.g. cut-out depth 610 mm).
Door panel dimensions and weights
1 Overlap of the panel at the top not taken into account.
² Overlap of the panel on right and left not taken into account.
³ Distance between the FrenchDoor refrigerator panels at least 5 mm.
610 mm
Appliance depth
610 mm
Appliance depth
610 mm
Cut-out depth
635 mm
Cut-out depth
635 mm
Cut-out depth
635 mm + thickness of the custom panel
Model H
Inset installation
B
Inset installation
H
Overlay installation
B
Overlay installation
Max.
panel weight
EKB 9271 2029 mm 603 mm 2032 mm 1 610 mm 2 30 kg
EKB 9471 2029 mm 756 mm 2032 mm 1 762 mm 2 35 kg
EKB 9671 2029 mm 908 mm 2032 mm 1 914 mm 2 40 kg
EGN 9171 2029 mm 451 mm 2032 mm 1 457 mm 2 25 kg
EGN 9271 2029 mm 603 mm 2032 mm 1 610 mm 2 30 kg
EGN 9471 2029 mm 756 mm 2032 mm 1 762 mm 2 35 kg
EGN 9671 2029 mm 908 mm 2032 mm 1 914 mm 2 40 kg
EWT 9175 2029 mm 451 mm 2032 mm 1 457 mm 2 24 kg
EWT 9275 2029 mm 603 mm 2032 mm 1 610 mm 2 24 kg
ECBN 9471
Refrigerator compartment
1255 mm 756 mm 1258 mm 1 762 mm 2 35 kg
ECBN 9471
Freezer compartment
768 mm 756 mm 768 mm 1 762 mm 2 25 kg
ECBN 9671
Refrigerator compartment
1255 mm 908 mm 1258 mm 1 914 mm 2 40 kg
ECBN 9671
Freezer compartment
768 mm 908 mm 768 mm 1 914 mm 2 30 kg
ECBN 9673
Refrigerator compartment
1255 mm 451 mm 3 1258 mm 1 454 mm 2.3 40 kg
ECBN 9673
Freezer compartment
768 mm 908 mm 768 mm 1 914 mm 2 30 kg
