IMPORTANT!
The adjustable feet are fully retracted
for the minimum height stated.
The appliance height is raised by turning
the adjustable feet. Once the appliance
has been positioned in the recess, it is
raised using the adjustable feet – in
each case from the front of the appliance –
so that the appliance comes into
contact with the anti-tipping device. To
achieve the minimal plinth panel height
of 102 mm, the adjustable feet have to
be raised by 6 to 8 mm. If the plinth
panel should be higher than 102 mm,
the adjustable feet can be raised by a
maximum of 19 mm.
762 mm
D D
76 mm 76 mm
A
B
E C
102 mm
72 - 106 mm
2134 mm
754 mm
762 mm
D D
76 mm 76 mm
A
B
C
2134 mm
E
Door panel dimensions
and dimensions of free length for power / water
~1850
~2400
~2250
~1700
B
H
C
* If a five-piece shaker style panel is used, which is thinner than the minimum panel thickness, shorter screws than those supplied in the accessory pack must be used.
19

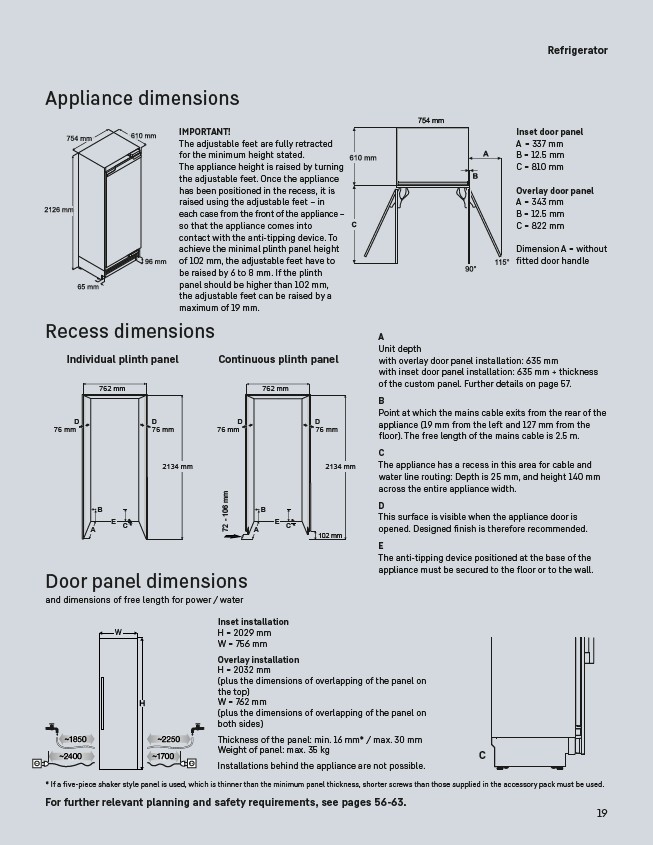

W Appliance dimensions
Recess dimensions
Inset door panel
A = 337 mm
B = 12.5 mm
C = 810 mm
Overlay door panel
A = 343 mm
B = 12.5 mm
C = 822 mm
Dimension A = without
fitted door handle
Individual plinth panel Continuous plinth panel
A
Unit depth
with overlay door panel installation: 635 mm
with inset door panel installation: 635 mm + thickness
of the custom panel. Further details on page 57.
B
Point at which the mains cable exits from the rear of the
appliance (19 mm from the left and 127 mm from the
floor). The free length of the mains cable is 2.5 m.
C
The appliance has a recess in this area for cable and
water line routing: Depth is 25 mm, and height 140 mm
across the entire appliance width.
D
This surface is visible when the appliance door is
opened. Designed finish is therefore recommended.
E
The anti-tipping device positioned at the base of the
appliance must be secured to the floor or to the wall.
Inset installation
H = 2029 mm
W = 756 mm
Overlay installation
H = 2032 mm
(plus the dimensions of overlapping of the panel on
the top)
W = 762 mm
(plus the dimensions of overlapping of the panel on
both sides)
Thickness of the panel: min. 16 mm* / max. 30 mm
Weight of panel: max. 35 kg
Installations behind the appliance are not possible.
For further relevant planning and safety requirements, see pages 56-63.
Refrigerator
