LargeDoor
76.2 cm (refrigerator compartment panel dimensions: 756 mm x 1255 mm x 19 mm, weight: 17.8 kg)
(freezer compartment panel dimensions: 756 mm x 768 mm x 19 mm, weight: 11 kg)
76.2 91.4 91.4
53
LargeDoor (2-part set) FrenchDoor (3-part set)
9903 020 for model: ECBN 9471
91.4 cm (refrigerator compartment panel dimensions: 908 mm x 1255 mm x 19 mm, weight: 21.4 kg)
(freezer compartment panel dimensions: 908 mm x 768 mm x 19 mm, weight: 13.8 kg)
9903 019 for model: ECBN 9671
FrenchDoor
91.4 cm (refrigerator compartment panel dimensions per door: 451 mm x 1255 mm x 19 mm, weight: 11 kg)
(freezer compartment panel dimensions: 908 mm x 768 mm x 19 mm, weight: 13.8 kg)
9903 022 for model: ECBN 9673

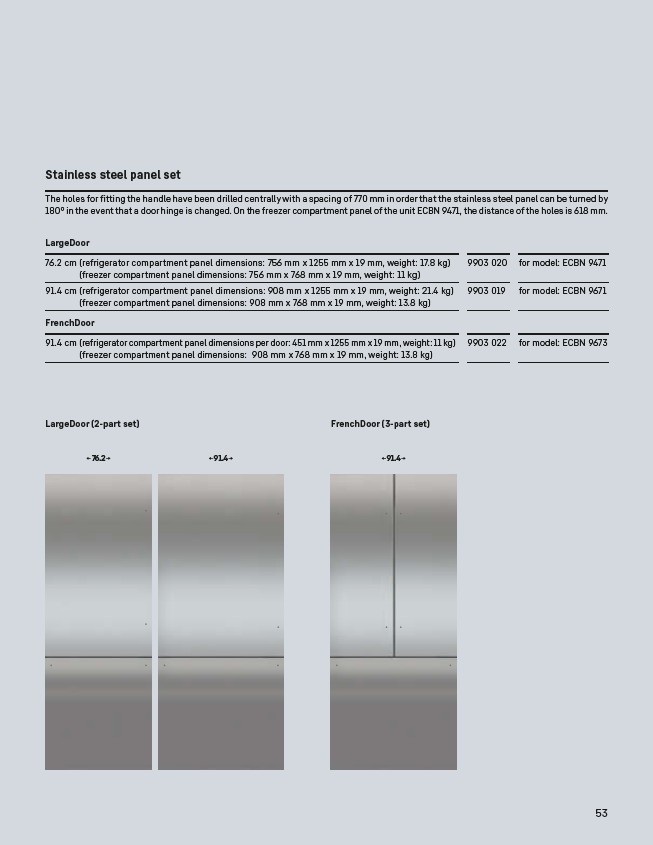

Stainless steel panel set
The holes for fitting the handle have been drilled centrally with a spacing of 770 mm in order that the stainless steel panel can be turned by
180° in the event that a door hinge is changed. On the freezer compartment panel of the unit ECBN 9471, the distance of the holes is 618 mm.
