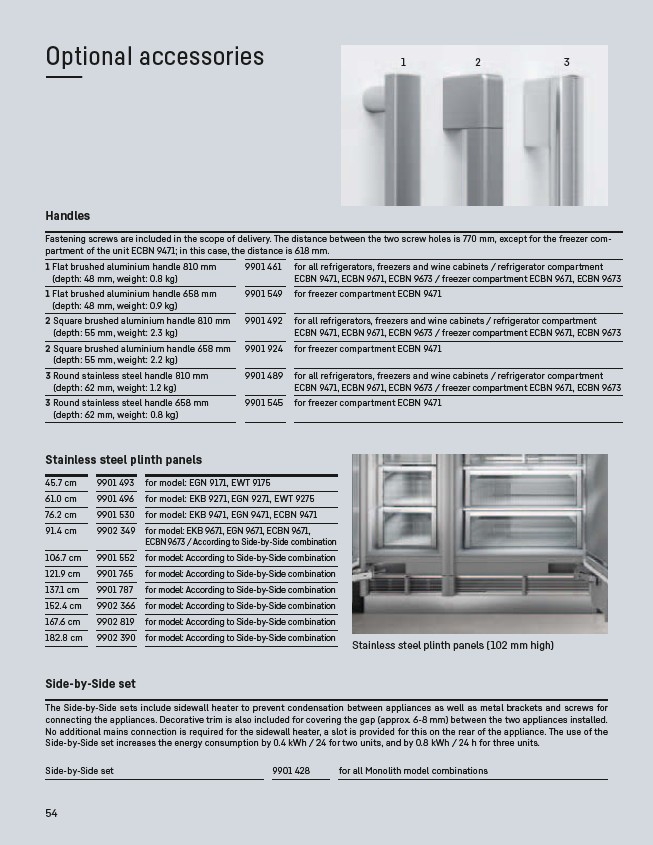

54 Optional accessories 1 2 3
⸺
Handles
Fastening screws are included in the scope of delivery. The distance between the two screw holes is 770 mm, except for the freezer compartment
9901 461 for all refrigerators, freezers and wine cabinets / refrigerator compartment
ECBN 9471, ECBN 9671, ECBN 9673 / freezer compartment ECBN 9671, ECBN 9673
9901 549 for freezer compartment ECBN 9471
9901 492 for all refrigerators, freezers and wine cabinets / refrigerator compartment
ECBN 9471, ECBN 9671, ECBN 9673 / freezer compartment ECBN 9671, ECBN 9673
9901 924 for freezer compartment ECBN 9471
9901 489 for all refrigerators, freezers and wine cabinets / refrigerator compartment
ECBN 9471, ECBN 9671, ECBN 9673 / freezer compartment ECBN 9671, ECBN 9673
9901 545 for freezer compartment ECBN 9471
Stainless steel plinth panels (102 mm high)
of the unit ECBN 9471; in this case, the distance is 618 mm.
1 Flat brushed aluminium handle 810 mm
(depth: 48 mm, weight: 0.8 kg)
1 Flat brushed aluminium handle 658 mm
(depth: 48 mm, weight: 0.9 kg)
2 Square brushed aluminium handle 810 mm
(depth: 55 mm, weight: 2.3 kg)
2 Square brushed aluminium handle 658 mm
(depth: 55 mm, weight: 2.2 kg)
3 Round stainless steel handle 810 mm
(depth: 62 mm, weight: 1.2 kg)
3 Round stainless steel handle 658 mm
(depth: 62 mm, weight: 0.8 kg)
Stainless steel plinth panels
45.7 cm 9901 493 for model: EGN 9171, EWT 9175
61.0 cm 9901 496 for model: EKB 9271, EGN 9271, EWT 9275
76.2 cm 9901 530 for model: EKB 9471, EGN 9471, ECBN 9471
91.4 cm 9902 349 for model: EKB 9671, EGN 9671, ECBN 9671,
ECBN 9673 / According to Side-by-Side combination
106.7 cm 9901 552 for model: According to Side-by-Side combination
121.9 cm 9901 765 for model: According to Side-by-Side combination
137.1 cm 9901 787 for model: According to Side-by-Side combination
152.4 cm 9902 366 for model: According to Side-by-Side combination
167.6 cm 9902 819 for model: According to Side-by-Side combination
182.8 cm 9902 390 for model: According to Side-by-Side combination
Side-by-Side set
The Side-by-Side sets include sidewall heater to prevent condensation between appliances as well as metal brackets and screws for
connecting the appliances. Decorative trim is also included for covering the gap (approx. 6-8 mm) between the two appliances installed.
No additional mains connection is required for the sidewall heater, a slot is provided for this on the rear of the appliance. The use of the
Side-by-Side set increases the energy consumption by 0.4 kWh / 24 for two units, and by 0.8 kWh / 24 h for three units.
Side-by-Side set 9901 428 for all Monolith model combinations
