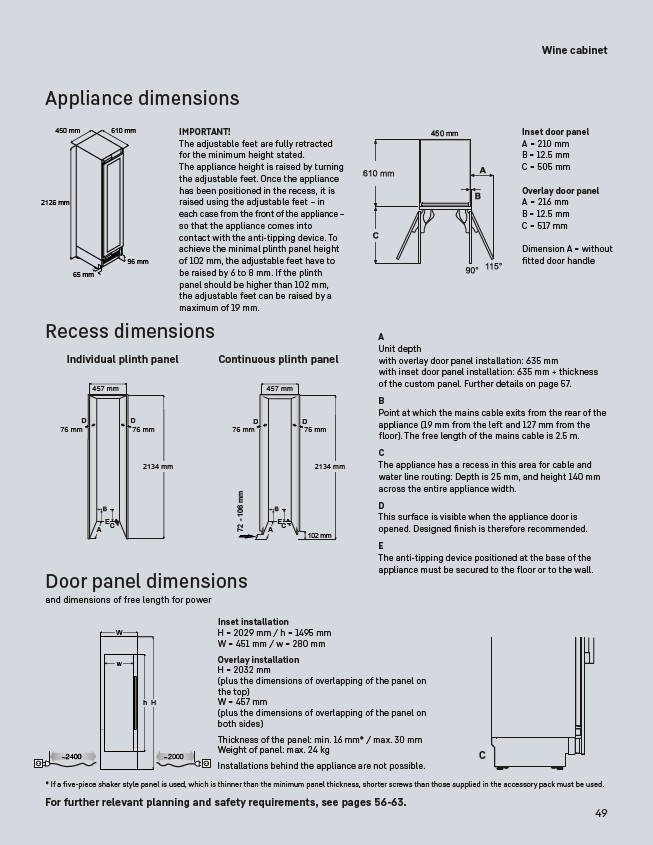

Appliance dimensions
450 mm 610 mm
D D
76 mm 76 mm
Door panel dimensions
and dimensions of free length for power
W
h H
w
IMPORTANT!
The adjustable feet are fully retracted
for the minimum height stated.
The appliance height is raised by turning
the adjustable feet. Once the appliance
has been positioned in the recess, it is
raised using the adjustable feet – in
each case from the front of the appliance –
so that the appliance comes into
contact with the anti-tipping device. To
achieve the minimal plinth panel height
of 102 mm, the adjustable feet have to
be raised by 6 to 8 mm. If the plinth
panel should be higher than 102 mm,
the adjustable feet can be raised by a
maximum of 19 mm.
~2400 ~2000
76 mm 76 mm
102 mm
457 mm
A
B
72 - 106 mm
D D
2134 mm
EC
457 mm
A
B
C
2134 mm
E
2126 mm
65 mm
96 mm
A
Unit depth
with overlay door panel installation: 635 mm
with inset door panel installation: 635 mm + thickness
of the custom panel. Further details on page 57.
B
Point at which the mains cable exits from the rear of the
appliance (19 mm from the left and 127 mm from the
floor). The free length of the mains cable is 2.5 m.
C
The appliance has a recess in this area for cable and
water line routing: Depth is 25 mm, and height 140 mm
across the entire appliance width.
D
This surface is visible when the appliance door is
opened. Designed finish is therefore recommended.
E
The anti-tipping device positioned at the base of the
appliance must be secured to the floor or to the wall.
C
* If a five-piece shaker style panel is used, which is thinner than the minimum panel thickness, shorter screws than those supplied in the accessory pack must be used.
49
450 mm
Inset door panel
A = 210 mm
B = 12.5 mm
C = 505 mm
Overlay door panel
A = 216 mm
B = 12.5 mm
C = 517 mm
Dimension A = without
fitted door handle
Inset installation
H = 2029 mm / h = 1495 mm
W = 451 mm / w = 280 mm
Overlay installation
H = 2032 mm
(plus the dimensions of overlapping of the panel on
the top)
W = 457 mm
(plus the dimensions of overlapping of the panel on
both sides)
Thickness of the panel: min. 16 mm* / max. 30 mm
Weight of panel: max. 24 kg
Installations behind the appliance are not possible.
Recess dimensions
Individual plinth panel Continuous plinth panel
For further relevant planning and safety requirements, see pages 56-63.
Wine cabinet
